Doctor Blades

Essco’s manufacturing capabilities continue to expand to meet the changing needs of its customers, all with a focus on helping remain competitive.

To ensure overall performance, Essco sources the highest quality raw materials, but its technicians go further by carefully checking all incoming stock for metallurgical and chemical specifications. Essco also utilizes the Rockwell hardness test method to confirm the integrity of the materials before the blades are manufactured. This quality assurance procedure identifies each blade with its raw material source.

Essco’s commitment to product quality made it the first doctor blade manufacturer in the US to have an in-house blade material laminating facility. The Essco Laminates, Inc. subsidiary produces Essco’s many custom-formulated laminate grades, including the exclusive Fiberline™ family of advanced synthetics, which is the industry standard for composite blades. This capability allows Essco to fully control the quality, inventory, cost, and delivery of its laminated blades.

Every Essco doctor blade/scraper blade is parallel ground or machined for straightness to eliminate camber. Dimensional tolerances and bevel uniformity are also assured. Each blade is then hand-finished, deburred, and cleaned for optimal performance.

Material options for Essco doctor blades and scraper blades include:

Decorative

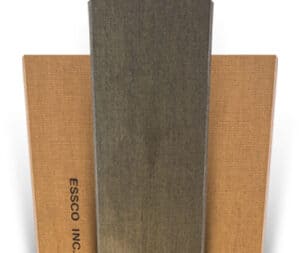

Cotton Doctor Blades

Cotton

Essco cotton-based blades offer economical water and fiber removal for forming sections and soft press rolls on certain paper machines.

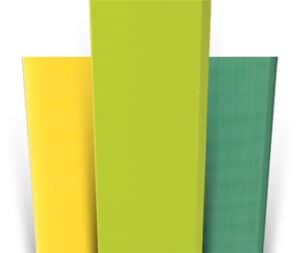

Plastic Doctor Blades

Plastic

Plastic blades provide cost-effective options for applications that require less rigidity, such as water removal.

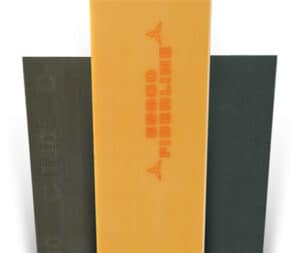

Fiberglass Doctor Blades

Fiberglass

Fiberglass blades combine excellent roll-cleaning performance with superior wear-resistance. Fiberglass blades can also incorporate custom laminates engineered to meet the specific needs of just about any application.

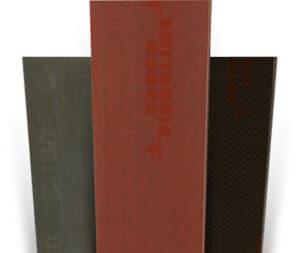

Carbon Fiber Doctor Blades

Carbon Fiber

Carbon fiber is a leading choice for applications that require a strong, long-lasting doctor blade. Essco carbon fiber blades combine stiffness and high corrosion resistance for improved lifecycle costs.

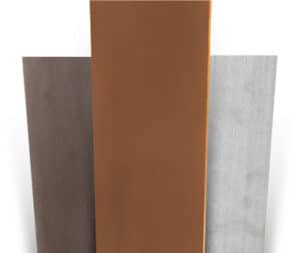

Metal Doctor Blades

Metal

Primarily used in tissue and creping operations, Essco metal blades are available in several alloys and hardness ranges to meet specific application requirements.

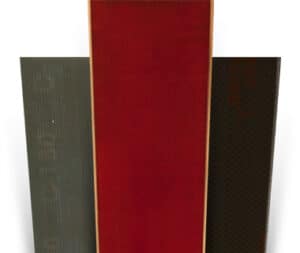

Abrasive Doctor Blades

Abrasive

Abrasive blades offer excellent cleaning performance for oscillating applications, such as press doctor trailing positions or in the dryer section.

Decorative

Filter Results

Filter icon
Select Material
Blade Material Filter
Select Application
Doctor Blade Application Filter
BladeMaterialStandard Thickness
Custom Fiberline AC
Custom Fiberline AC Doctor Blade

In-house Manufacturing Allows Unique Formulations

Custom Fiberline AC can be made for special applications

Doctor Blade Brochure

Fiberline
Fiberline AC Doctor Blade

Proprietary Fiberglass Cloth, Epoxy Resin

.020"; .028"; .040"; .060"; .070"; .090"; .110"

Doctor Blade Brochure

Fiberline AC
Fiberline AC Doctor Blade

High-Performance Proprietary Epoxy Resin and Carbon Fiber

.060"; .070"; .080"; .090"; .110"; .120"

Doctor Blade Brochure

Fiberline AC3
Fiberline AC3 Doctor Blade

Enhanced Carbon Content for Improved Performance in Critical Applications

.070"; .080"; .090"; .110"; .120"

Doctor Blade Brochure

Fiberline AC4
Fiberline AC4-AC5 Doctor Blade

100% Carbon Fiber

.070"; .080"; .090"; .110"; .120"

Doctor Blade Brochure

Fiberline AC5
Fiberline AC4-AC5 Doctor Blade

100% Carbon Fiber

.070"; .080"; .090"; .110"; .120"

Doctor Blade Brochure

Fiberline ACGR2
Fiberline ACGR2 Doctor Blade

Carbon Fiber Reinforced Abrasive for Critical Applications

.070"; 0.90" available 600, 320, 220, 180, and 100 grit

Doctor Blade Brochure

Fiberline ACSL
Fiberline ACSL Doctor Blade

Carbon Fiber Reinforced with Non-Abrasive Fiberglass Alternative

.110"

Doctor Blade Brochure

Greenline
Greenline Doctor Blade

Fine-Weave Fiberglass with Phenolic Resin

.060"; .070"; .080"; .090"

Doctor Blade Brochure

Gritline
Gritline Doctor Blade

High-Performance Abrasive with Fiberglass and Epoxy Resin.

.070"; .080"; .110" available 600, 320, 220, 180, and 100 grit

Doctor Blade Brochure

Redline AC
Redline AC Doctor Blade

Proprietary Carbon Fiber/Fiberglass

.060"; .070"; .080"; .090"; .110"; .120"

Doctor Blade Brochure

Spec 172
Spec 172 Doctor Blade

1075/1095 steel

.025"; .035"; .050"

Doctor Blade Brochure

Filter icon

Filter Results

Select Material
Blade Material Filter
Select Application
Doctor Blade Application Filter
Fiberline AC5
Fiberline AC4-AC5 Doctor Blade

Material

100% Carbon Fiber

Standard Thickness

.070"; .080"; .090"; .110"; .120"
Fiberline AC4
Fiberline AC4-AC5 Doctor Blade

Material

100% Carbon Fiber

Standard Thickness

.070"; .080"; .090"; .110"; .120"
Spec 173HT
Spec 173HT Doctor Blade

Material

Stainless Steel with Tungsten Carbide or other proprietary wear-resistant coating

Standard Thickness

.050"
Spec 285GB
Spec 285GB Doctor Blade

Material

Micron-Bead-Filled UHMW Polyethylene with Extended Thermal and Wear Properties

Standard Thickness

.250"
Custom Fiberline AC
Custom Fiberline AC Doctor Blade

Material

In-house Manufacturing Allows Unique Formulations

Standard Thickness

Custom Fiberline AC can be made for special applications
Spec 176
Spec 176 Doctor Blade

Material

Bronze

Standard Thickness

.035"; .050"; .093"
